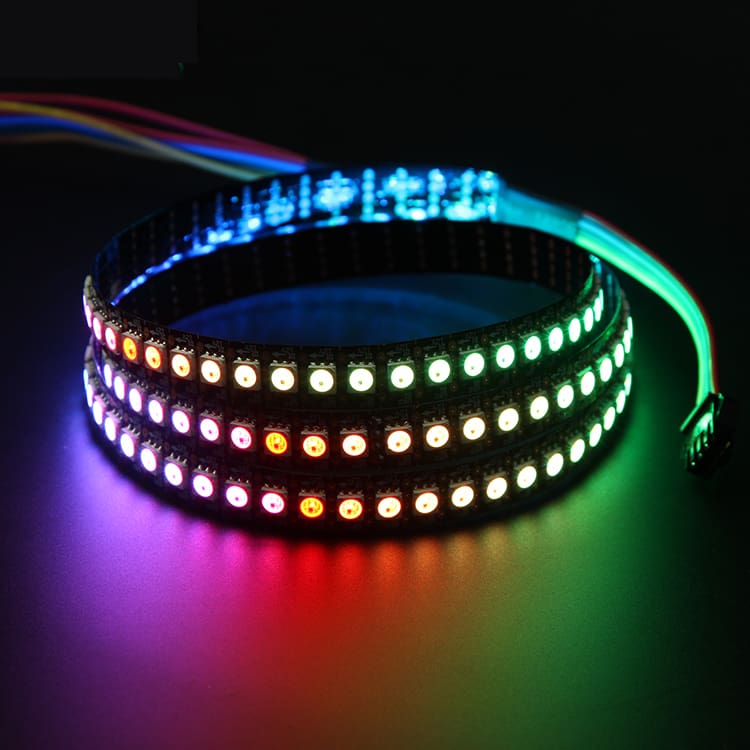

WS2815 Digital Addressable LED Strip – 60 LEDs/m – 1m (Adafruit NeoPixel compatible) Really For Sale

DESCRIPTION

This LED strip features the new WS2815 drivers based on the popular WS2812B and WS2813 models so it’s fully Aadafruit NeoPixel compatible. Similar to the WS2813 this LED strip features continuous breakpoint transmission meaning that if an LED stops working the data signal continues and the rest of the strip will still light up as usual thanks to a backup data signal.

The same as most other addressable LED strips, it’s cut-able after each LED. There is a large soldering Pad but each cut indication which makes easy to re-solder and connects to again. Connections are clearly labelled on the strip +12V DI ,BI and GND. Both DI and BI are data signals but you only need to use the DI cable with your controller.

FEATURES

• Beam Angle: 120 Degrees
• LED Quantity: 60 LEDs/m
• Emitting Colour: Full Colour
• Operating Voltage: 12V DC
• Power(W): 15w/m (max)
• Wavelength: R:635nm, G:510nm, B:470nm

RESOURCES

• Addressable LED Strips – Common Questions
• Pololu LED strip Arduino Library (WS2812B)
• Pololu LED strip mbed Library (WS2812B)
• OctoWS2811 LED Library – For the Teensy, control up to 8 strips simultaneously with direct memory access (DMA)
• Adafruit Neopixel Library
• Adafruit NeoPixel Uberguide
