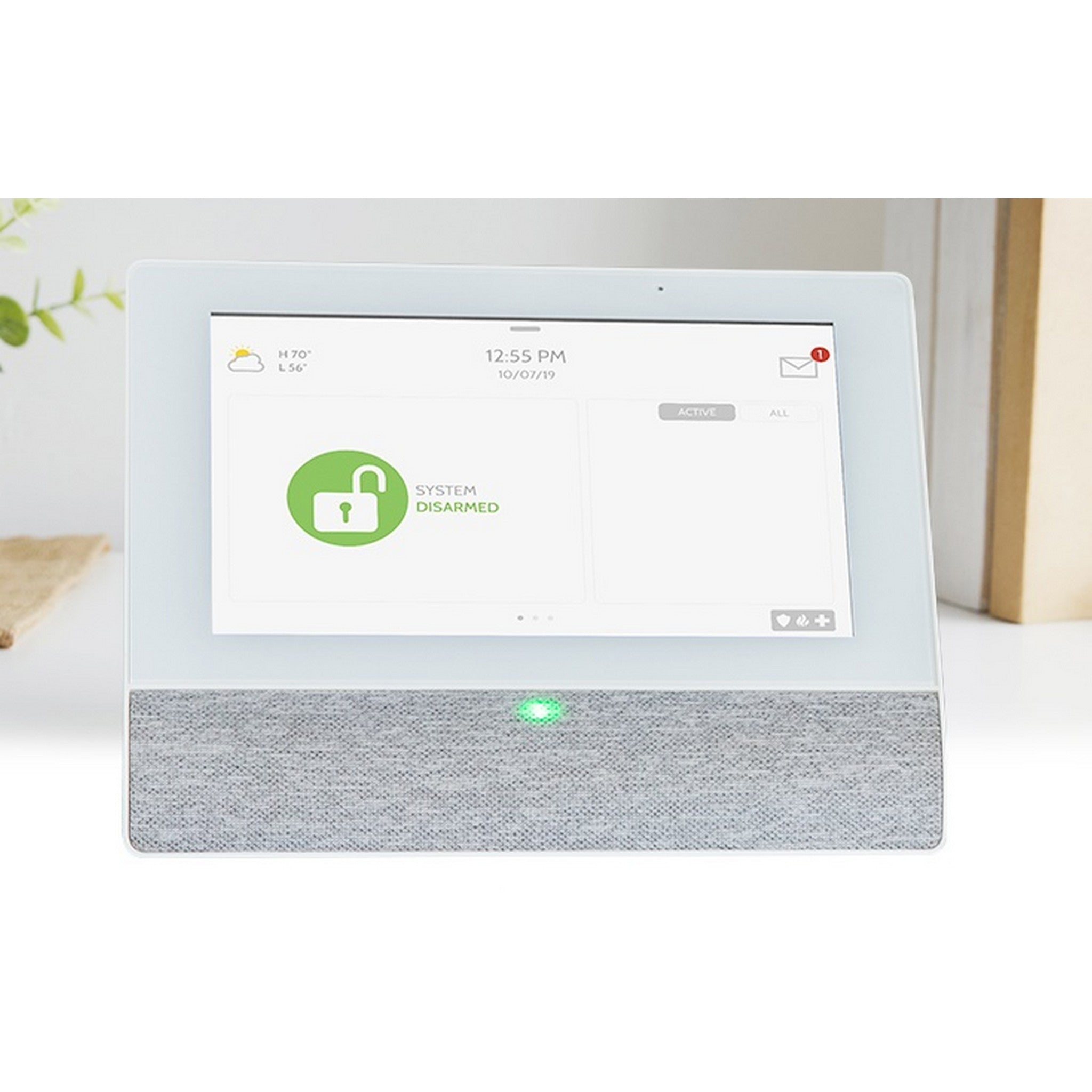

The Qolsys IQ HUB AT&T Smart Home Control Interface is designed to be your central hub for smart home security and control, offering a user-friendly experience that combines the best of both worlds. With a built-in 7-inch touchscreen, you can easily see who’s at the door using the Live Answer functionality for your video doorbell, providing an extra layer of security for your home. Disarming your system is also a breeze thanks to Bluetooth Touchless Disarming.
When it comes to smart home control, the Qolsys IQ HUB AT&T Smart Home Control Interface eliminates the need for multiple apps and interfaces. It features a user-friendly interface that allows you to manage all your compatible smart home devices directly from the panel, including lights, locks, and thermostats. This creates a seamless and convenient home environment where everything works in sync.
The Qolsys IQ HUB AT&T Smart Home Control Interface isn’t just about ease of use; it’s also packed with advanced technology. The large 7-inch touchscreen display provides crystal clear viewing for security footage, system controls, and other smart home applications. What truly sets the IQ Hub apart is its robust connectivity. Unlike hubs that rely on a single radio, the IQ Hub boasts a powerful combination of five wireless radios. This ensures unparalleled reliability and minimizes the chance of dropped connections, keeping your smart home functioning smoothly.
So if you’re looking to upgrade your home security and experience the ultimate in smart home convenience, then the Qolsys IQ HUB AT&T Smart Home Control Interface is a perfect solution. It offers a combination of user-friendly features, robust functionality, and advanced technology, all in one central hub.
Key Features
- Experience the simplicity of security and smart home control with a 7-inch display
- Enjoy the convenience of viewing your video doorbell on the 7-inch screen using Live Answer
- Discover the ultimate coming home experience like never before
- The IQ Hub goes beyond a single radio, featuring an impressive five radios
- Unlock a world of possibilities with the IQ Hub’s extensive range of functionalities
Technical Specifications
LCD Display
Size
7 inch LCD
Resolution
1024 x 600
RGB
24bit
Touchscreen Type
Capacitive glass multi-touch
User Codes
Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
Network
WiFi 802.11 a/b/g/n/ac dual band 2.4/5G – including built-in access point capability
Cellular LTE (Bands 2, 4, 5, 7, 12, 13)
Z-Wave Plus (500)
Up to 152 Devices 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc)
Wireless Security
Up to 128 Devices Depending on the model: Either PowerG, S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz
Bluetooth Disarm & Audio
Bluetooth Low Energy (BLE)
Flash Memory Internal Storage
16GB NAND Flash
LED Indicator Status
LED Green (Disarmed), Red (Armed)
Speaker
2W Mono speaker
Siren
SPL minimum 85dB for UL985
Microphone
1x Microphone
Panel + Wall Tamper
Tamper switch with spring release and reporting to status app
Battery Type
18650 Rechargeable Lithium Polymer 2600mAh Rated for over 24 hours
Buttons
Hard Buttons; Single wake/sleep button, all user controls through touch interface
Mechanical Dimension
6.1”H x 7.7”W x 1”D (155mm x 195mm x 27mm)
Power Supply
12v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL
Mount Back Plate
SmartMount for wall mounting included. SmartMount table stand sold separately
Certifications
FCC
2AAJXQS-IQHUB
IC
11205A-QSIQHUB
UL
UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
Temperature
Operational
0 to 49 C Up to 93% Relative Humidity, Indoor, dry ordinary locations use only
Storage
-20 to 50C
Operating System
Android 7 Security & Home Automation Touch and Swipe Interface
