IC Realtime IH-ESL75 Electric Strike Door Lock Authentic

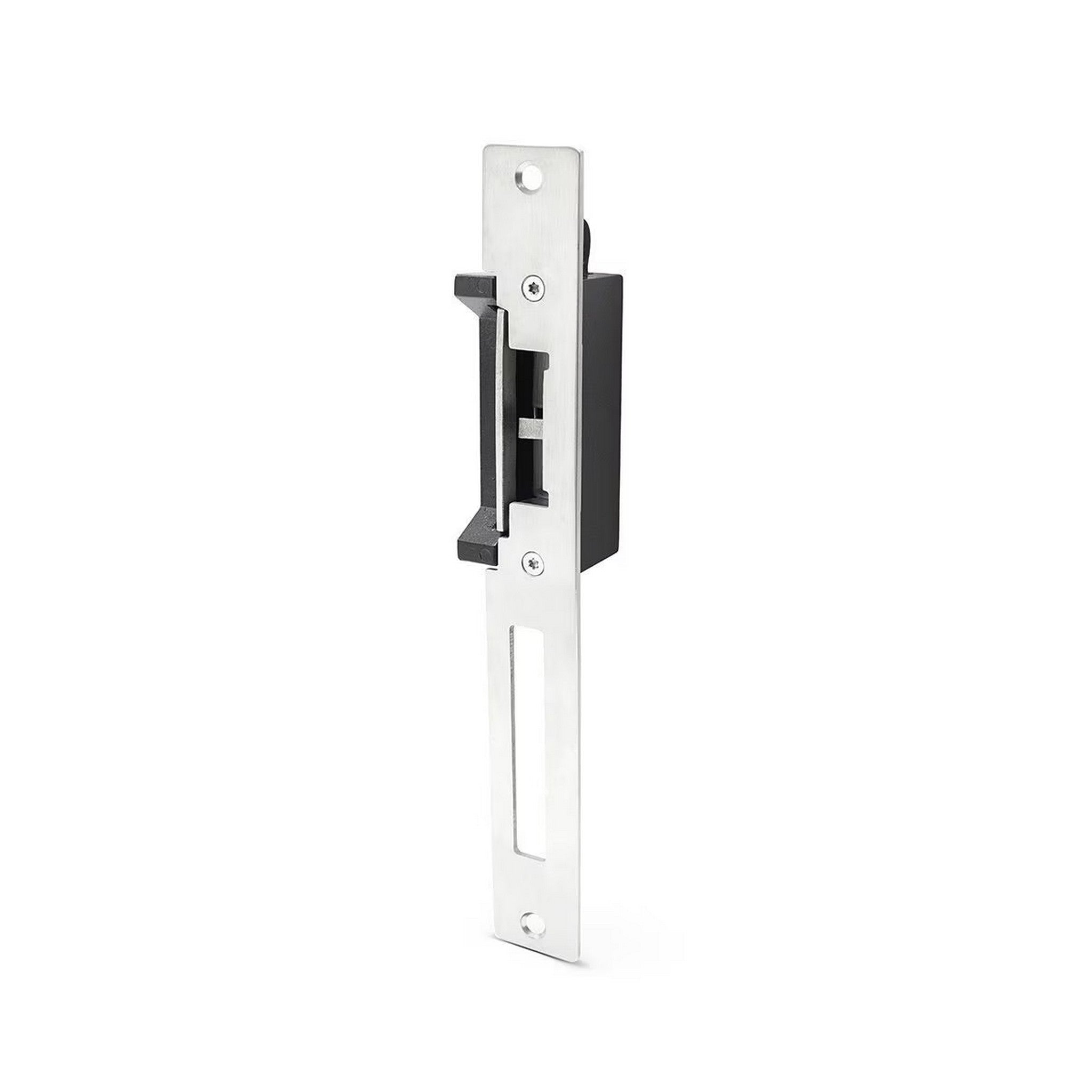

IC Realtime IH-ESL75 Electric Strike Door Lock

The IC Realtime IH-ESL75 Electric Strike Door Lock is a high-quality, fail-secure locking solution designed to enhance security in various applications. Built with precision and durability in mind, this electric strike features a robust stainless steel casing that offers exceptional vandal resistance. Whether for commercial or residential use, the IH-ESL75 provides the utmost in security and performance.

Engineered to support up to 1100 lbs of anti-pull force, this strike lock is capable of handling demanding environments. With its compact dimensions of 9.8 inches by 0.98 inches by 1.4 inches, the IH-ESL75 easily integrates into existing door systems while maintaining a sleek and discreet profile.

Operating within a wide temperature range of -22°F to +140°F (-30°C to +60°C) and a high humidity level of 95%, this electric strike is built to withstand even the most challenging environmental conditions. For professionals looking for reliable and secure access control, the IC Realtime IH-ESL75 Electric Strike Door Lock is the ideal choice.

Key Features

• FAIL-SECURE locking mechanism
• Supports Up To 1100 lbs Of Anti-Pull Force
• 12 VDC operation (NOT INCLUDED)
• Stainless steel precision casting casing
• Dimensions: 9.8 x 0.98 x 1.4 inches (250 x 25 x 35mm)

Technical Specifications

Power Supply: DC12V

Power Consumption: 320mA

Operating Conditions: -30°C to +60°C (-22°F to +140°F)

Operating Humidity: 95%

Vandal Resistance: 1100 lbs (500 kg)

Casing: Stainless steel precision casting

Dimensions: 9.8 x 0.98 x 1.4 inches (250 x 25 x 35mm)

What’s Included

• IC Realtime IH-ESL75 Electric Strike Door Lock
• Installation Hardware
• User Manual
