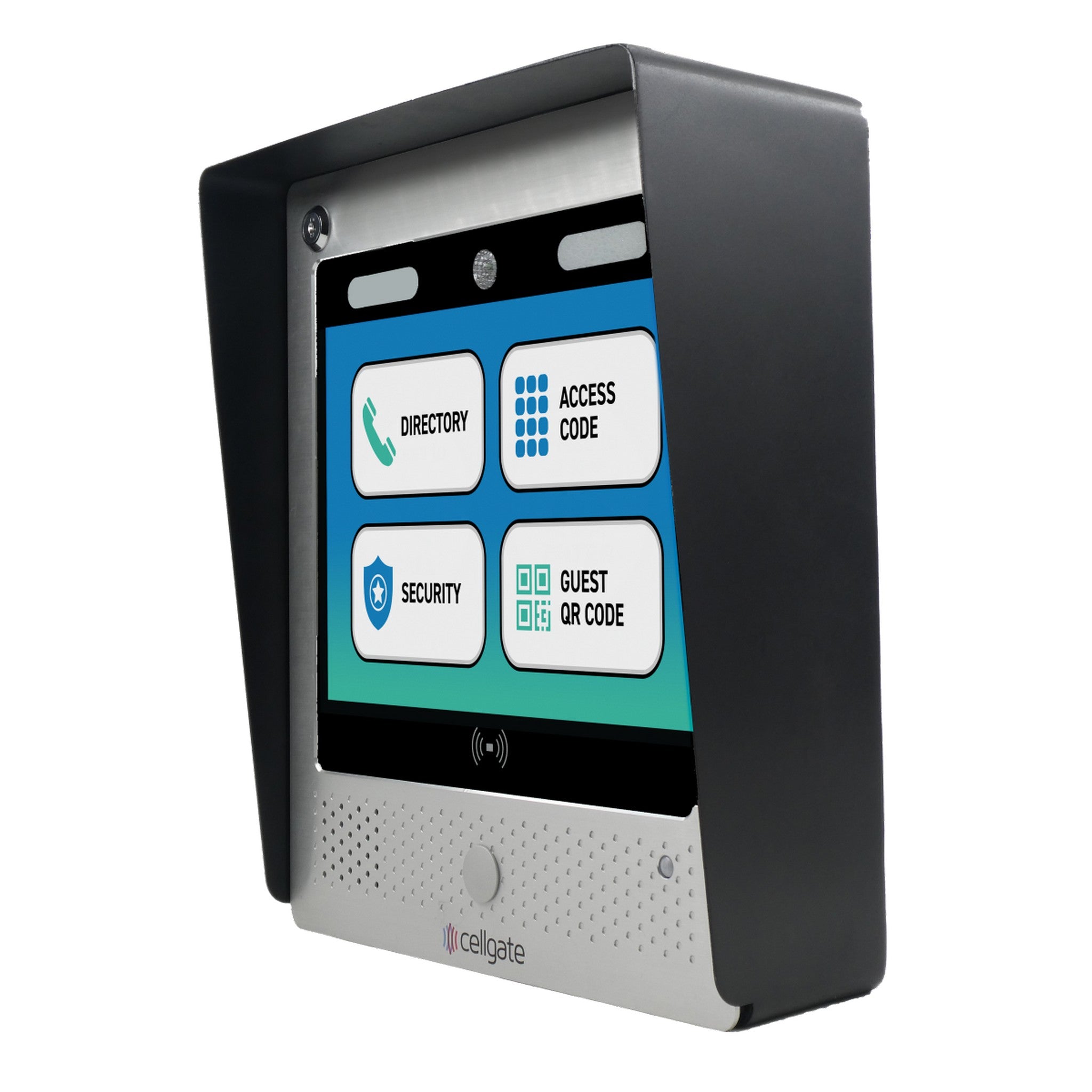

UC-AA1XLPEVZ Access Control Solution

The UC-AA1XLPEVZ is an exceptional access control solution designed by ADI Global Distribution to meet the highest standards of security and efficiency. Engineered for both commercial and residential applications, this advanced system offers robust performance with an emphasis on reliability and ease of use. Featuring a sleek design and cutting-edge technology, the UC-AA1XLPEVZ integrates seamlessly into existing setups, providing enhanced control over access points with minimal disruption.

Designed to cater to a wide range of security needs, the UC-AA1XLPEVZ ensures secure and efficient management of access permissions. Its intuitive interface simplifies configuration and user management, allowing for quick adaptation to various security protocols. The system supports multiple access methods and offers flexibility in user credential management, making it an ideal choice for dynamic environments where security requirements may frequently change.

Whether upgrading existing security measures or implementing a new system, the UC-AA1XLPEVZ stands out for its durability and performance. The high-quality construction and advanced features ensure long-term reliability, making it a valuable investment for safeguarding property and managing access efficiently.

Key Features

• Advanced security features for enhanced protection
• Seamless integration with existing systems
• Intuitive interface for easy configuration
• Supports multiple access methods and credential management
• Durable and reliable construction for long-term use

Technical Specifications

Dimensions
8.5″ x 6.0″ x 1.5″
Weight
2.2 lbs

External Camera Options
Bullet Cameras:
4mm Fixed Focal Lens
5-64mm Varifocal Lens
2.8-12mm Varifocal Lens
Dome Camera:
3-10.5mm Varifocal Lens
HD Camera Angles:
Horizontal: 120°
Vertical: 64°
Camera MP: 3MP

Power Consumption Hardware
625mA (average)
External Cam: 350mA to 1A

Wiegand Input Retrofit Part Numbers
Part #s Required:
Mounting plate (supports up to two expansion boards) p/n: CB-WIM 4000
Expansion board (order one or two as required) p/n: CB-WIM 2000

3 Relays
Switching voltage: 30V
Switching current: 5A

3 Digital Inputs

IP Rating
IP65 – outdoor rated

Operating Temperature
-20°C to 55°C

Dimensions – Surface Mount
Height: 375mm (14.75”)
Width: 305mm (12.75”)
Depth: 95mm (3.75”)

Dimensions – Pedestal Mount
Height: 375mm (14.75”)
Width: 305mm (12.75”)
Depth: 95mm (3.75”) – Bottom
152mm (6”) – Top

Cellular Technology/Networks LTE
AT&T and Verizon

Internet
Shipped with DHCP default Private IP addresses may be required.

Included in Box
Watchman WXL
Power supply – 5A
Magnetic switch
Installation manual & user manual

Flush Mount Kits (Surface Mount Model)(NOT Included)
ENC-WFM1003 includes trim ring and rough-in box (no antennas included)
ENC-WFM1004 includes trim ring (no rough-in box and no antennas included)
ENC-WFM1005 includes trim ring, L-bracket antennas, rough-in box
ENC-WFM1006 includes trim ring, L-bracket antennas (no rough-in box)
